The key to continuous gas sampling, especially when that sample used is a control or verification variable of the carbon potential control system, is maintaining clean and dry tubing, pumps, filters, and sensors.
The SSi sample tube contains an inner ceramic tube so that methane, propane (or any other hydrocarbon) does not catalyse in the tube. This can affect accuracy of samples and create soot blockages. The outer tube is RA330 alloy which will last up to 5 years in pit, sealed quench, and continuous furnaces. We have designed three models for various applications. If you require a custom design please contact us with specifications.
Fixed Gas Analyser Sample Tube
PART NUMBER 20264
| Designed for continuous use with MGA6010 or MZA6010 |
| 31″ (787.4 mm) Sample Tube, RA330 Alloy |
| Maximum insertion length 22.125″ (561.9 mm) |
| 0.84″ (21.3 mm) O.D. steel tube with 0.19 ft. (57.9 mm) ceramic insert |
| Includes: high temperature filter with removable element, sample ball valve, auxiliary sampling port, adjustable gland for variable insertion depth, connectors and fittings |
| Mounts in a 1″ (25.4 mm) NPT bushing |
| Processes and Applications | Annealing, Carburising, Nitriding, Sintering |
|---|
Drawings

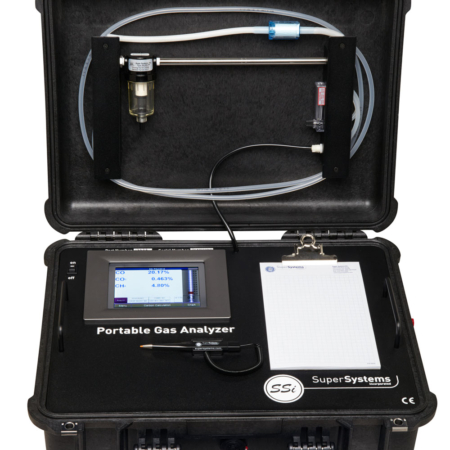

Portable Four Gas (CO, CO2, CH4, H2) Gas Analyser
